Description
Description

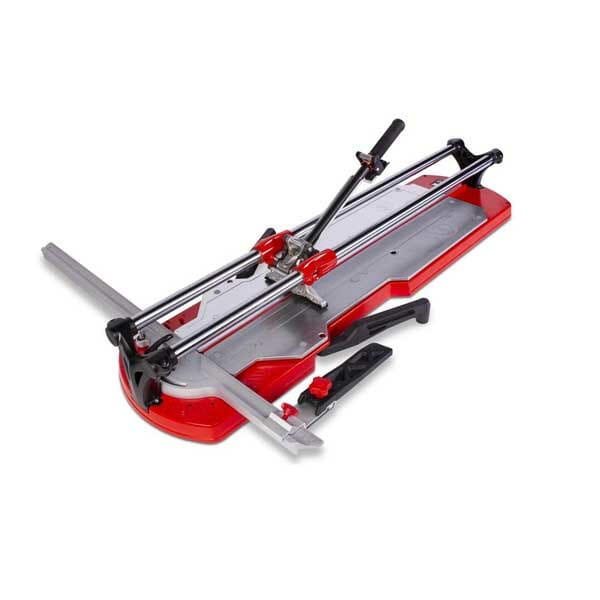

Rubi TX-1020 Max Manual Tile Cutter
The range of TX-MAX professional manual cutters are perfect for INTENSIVE cutting of all types of ceramic tile. Thanks to its high performance MULTIPOINT breaker and its rotating square system, TX-MAX models allow easy and quick execution of angular cuts (from 0º to 45º), especially in porcelain stoneware tiles (AIa / BIa). Its high separation power (up to 1200 kg) allows the TX-MAX cutters to have an excellent behavior with extruded stoneware.
Tubular steel guides of 30 mm in diameter and the head with extra-long aluminum slides give an impressive structural robustness, making the most of the models with the highest cutting capacity.
The advanced position of the rivet increases the visibility during scratching and separation, and the gripper incorporates a protective, removable, which allows to work on the most delicate surfaces without risk of leaving marks.
The separator mechanism allows the use with one hand, facilitating the locking and unlocking of the gripper by means of a ratchet and trigger system. This system increases the performance of work, both in the materials of low thickness as in those of greater thickness (from 3 to 21 mm without the protector, and up to 19 with the anti-marking protector that includes the trap).
As a complement to the floating table system, the 1020 model is equipped with two additional side arms, to increase the support surface with large-format tiles.
All models of the TX-MAX range include a lateral stop for the measurement and blocking of repetitive narrow cuts and strips, as well as two cords (8 mm and 22 mm EXTREME) and the traditional case carry case.
The TX-MAX manual cutters are compatible with the full range of RUBI PLUS scoring wheels.
* There are some ceramic materials, with thicknesses exceeding 15 mm, which due to their physical characteristics, possible internal tensions or finishes, present difficulties to be cut manually. It is advisable to make some sample cuts to determine the compatibility of the product.
Features
- Tubular steel guides of Ø30 mm x 2 mm in wall thickness
- Head with aluminum slides, extra-long, with "self-lubricated" friction bushes
- Mobile separator with aluminum clamp, equipped with plastic protector to avoid marking on the most delicate surfaces
- The locking of the gripper, by ratchet mechanism, and unlocking, by trigger, allows scratching and separating with one hand. Greater SPEED of use. Increase performance in both thin and thick materials
- Better visibility of the area of scratching and cutting
- Aluminum injection base, reinforced by central rib, for greater Robustness
- Galvanized steel floating tables, increases the stability in the cut
- Revolving square, central pivot. Greater precision in the angular cuts.
- With lateral stop for repetitive cuts and narrow strips
- Equipped with 2 supplementary arms for large format ceramics
- Handle with soft grip grip for greater ergonomics and comfort
- Equipped with 8 mm and 22 mm EXTREME scoring wheels, compatible with the full range of PLUS scoring wheels.
- Includes carry case.
Specifications
Specifications
-
Maximum Cutting Length (cm)
-
Diagonal Cutting Length (cm)
-
Maximum Cutting Thickness (mm)
